Industrial & Commercial Panels
CUSTOM COLD STORAGE FOR WAREHOUSES AND LARGE FACILITIES
What Are Industrial Panels? Insulated Custom Storage Walls, Ceilings and Floors.
Industrial panels are insulated panels specifically designed and constructed for use in the walls, ceilings, and floors of cold storage facilities and warehouses. They are an integral component in the structure of the building and play a crucial role in creating and maintaining controlled environments for the storage of temperature-sensitive goods.
Dade Industrial Panels are insulated metal panels composed steel skins laminated to a minimum of 1.6” polyisocyanurate foam core (minimum 2.3 pcf density) manufactured in the USA. Dade Engineering Cold Storage Panels are insulated panels specifically designed for walls, ceilings, and floors of cold storage facilities and essential for maintaining controlled environments for temperature-sensitive goods. Dade panels consist of metal skins laminated to a polyisocyanurate foam core and are vital for industrial preservation and refrigeration across a diverse range of industries. Applications include: biological, industrial, military, food storage, aquatic products, flowers, nursery, greenhouse, animal husbandry, healthcare, medical, pharmaceutical, logistics, hospitality, hotels, farming, restaurants, specialty refrigerated distribution, food service, entertainment, craft breweries, wineries, institutional, education and food processing.
Panel Features & bENEFITS
Customized: Versatile for any configuration, able to provide a quote for any project no matter how big or small
Quick Installation: Easy to maintain, interior rounded concave corners does not collect debris and easy to clean
Relocatable: Easily removable and configurable - wall, floor, corner and ceiling joints
Cost-Efficient: Made to order, custom measure, avoids waste, up to 39 ft. panel length and usable width of 1000mm/39 3/8”
Durable: Resistant to harsh environmental elements, panel thickness from 1 9/16” up to 6” inches
Aesthetics: Pleasing appearance, choice of finishes - standard or flat, optional panel thickness as well as coatings, doors and accessories
Insulation: High thermal insulation capacity, panel thickness choices ranging from 40mm/1 9/16” up to 150mm/6”
Safe & Tested: Mechanically strong, fire tested (ASTM E 84) and strength tested (STEM E 8) for optimal & safe performance
Stability: Dimensionally stable, up to 39 ft. in panel length and usable width of 1000mm/39 3/8”
Seal: Water vapor tight, minimum 2.3 pcf density of 1.6” polyisocyanurate foam core
Pre-engineering panels: Air-tight channel tooling optimizes cold storage solutions
Chrome plated hardware: Durable finish enhances corrosion resistance for longevity in extreme conditions
Dade Panel Technical Specifications - Click on Link to Download
Dade Industrial Panel Presentation - Click on Link to Download
WHY the need for industrial panels?
Innovative industrial panel designs enhance temperature control and energy efficiency, improving cold storage performance. A durable coating protects against wear, moisture, chemicals, and abrasion in demanding environments. Chrome-plated parts offer longevity with a corrosion-resistant finish. The hardware ensures functional reliability, supporting heavy loads and enduring rigorous use.
What makes Dade Industrial Panels different?
All Dade Engineering products undergo thorough testing at our advanced manufacturing facilities to ensure accuracy and reliability before they are pre-assembled and shipped.
Installation diagrams are conveniently attached to every cooler, and each panel is clearly labeled for easy identification during setup.
We utilize high-quality resources to create airtight sealed panels, ensuring optimal performance.
Our dedicated team is always ready to assist you throughout your customized project, providing support from engineered plans, initial site surveys, through obtaining necessary permits, to complying with relevant codes and inspections.
Safety - UL and NSF approved.
What Options and Accessories are Available?
Optional Doors & Accessories: High Speed Doors, Heaters, Bumpers & Ceilings
Finish Choices: Black, Stainless, White in 26-gauge Acrylume, Stucco, or 24-gauge smooth stainless steel.
State of Art Controls: Temperature reading controls, effective door alarms and reliable light monitors are available and work together to provide an optimal storage environment for your perishable goods, enhancing both safety and efficiency.
Industrial metal panel Types
Industrial Panel Types: Standard, Semi-Smooth and Smooth
Dade Insulated Metal Industrial Panels feature steel outer layers bonded to a minimum 1.6-inch polyisocyanurate foam core with a density of at least 2.3 pcf and a length of 39 ⅜ inches (1000 mm). These panels have a tongue and groove design, making them suitable for refrigeration projects, especially in the Agro-food sector for transporting and storing frozen foods. They come in seven thicknesses, two exterior finishes, and a variety of colors.
Dade Industrial Panel Presentation - Click on Link to Download
panel & Corner Joint Construction for cold storage
Single and Double Joints, also available in Triple (3 joints)
Insulated Floor System & Base Board aCCESSORIES for Cold Storage

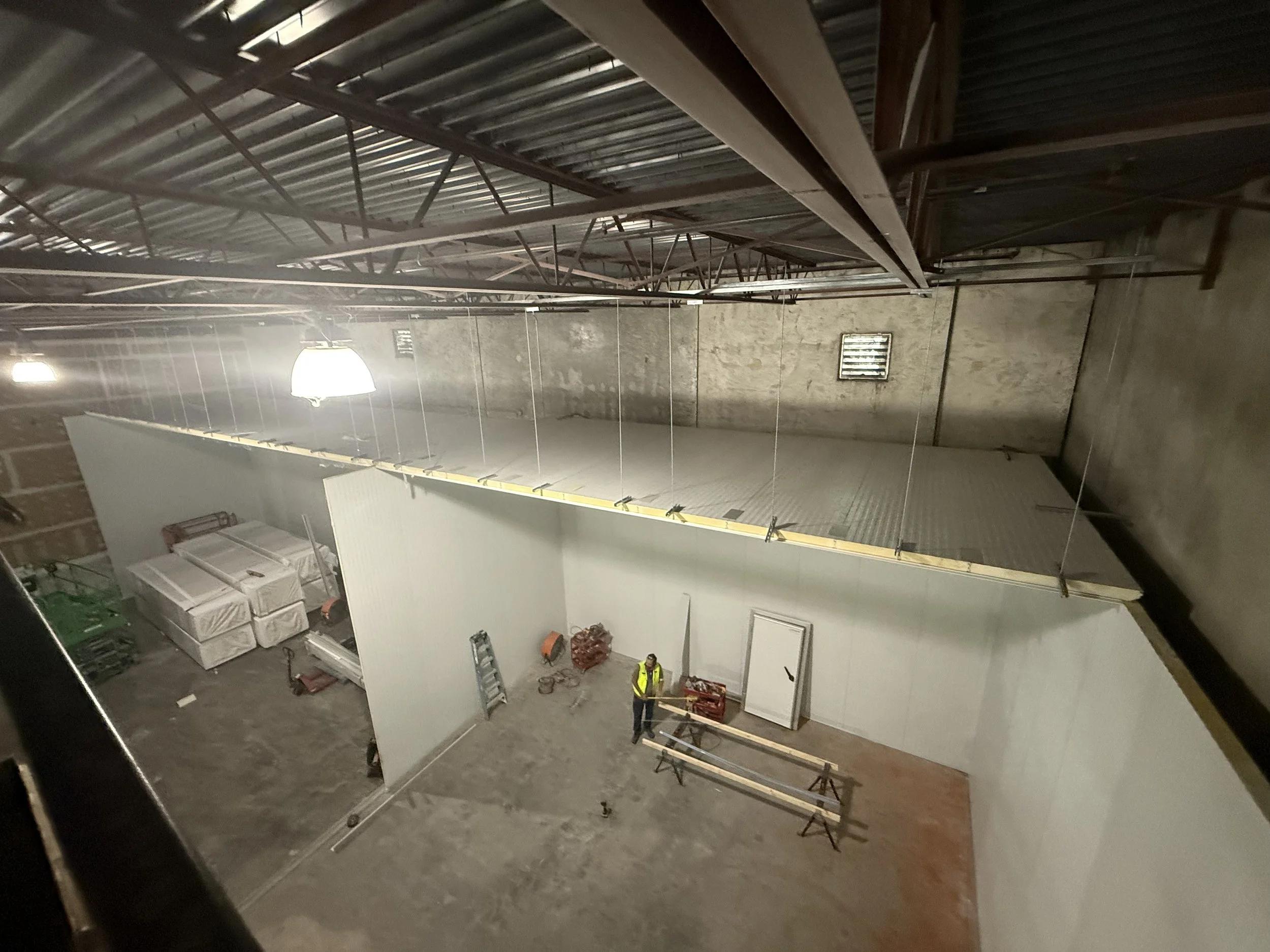

Hanging CEILING Systems for Cold Storage
Choose from two different ceiling systems:

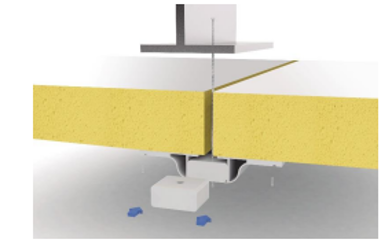

Longitudinal Suspension

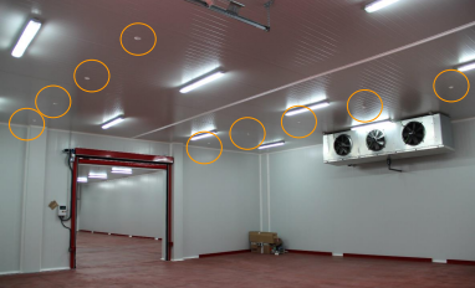

Ceiling Point Suspension
Corner Molding Systems
Aluminum and PVC Trims & Accessories
Industrial Panel Technical Data
Technical/Specification Data - Click on the Link to download
Warranty information
1 year warranty on hardware components.
10-year warranty on panel construction. (NOTE: Does not include labor)
50-year warranty on foam insulation.
